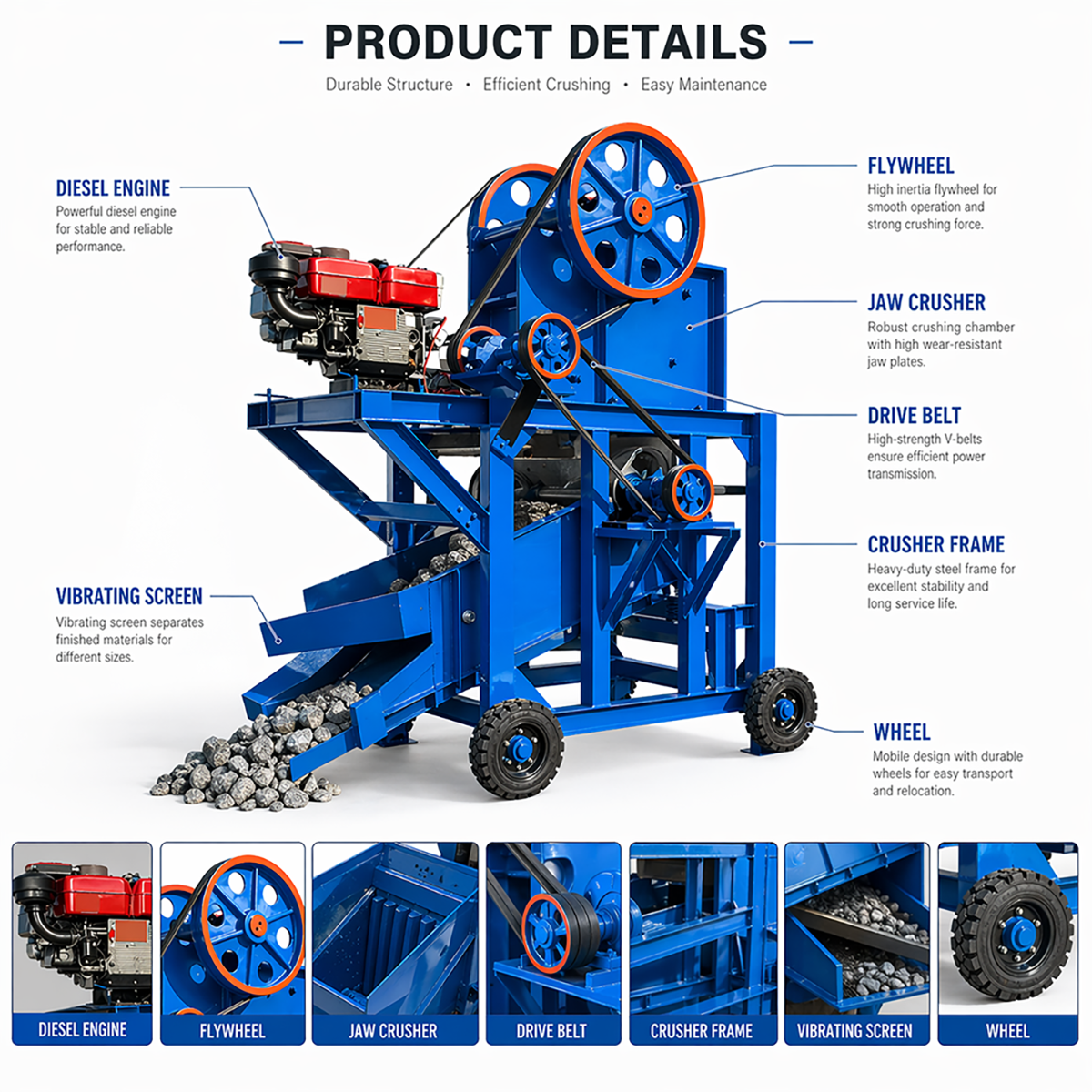

Electric Diesel Jaw Crusher with Vibrating Screen

Product Advantages

1、 Crushing and Screening in One Machine

2、Adjustable Output Size

3、 Customizable Screening System

4、Diesel or Electric Power Options

5、Suitable for Various Stone Materials

6、Flexible Crushing Solution

working principle

The jaw crusher with vibrating screen combines crushing and screening in a single compact unit.

Material is evenly fed into the jaw crusher for primary crushing, then sent to the vibrating screen via the conveyor system for grading. Qualified material is discharged as final product, while oversize particles are returned to the crusher for reprocessing through the recirculation system.

This continuous closed-loop operation enables one-stop "crushing + screening" processing, boosting productivity, ensuring consistent product size, and cutting energy use and material loss.

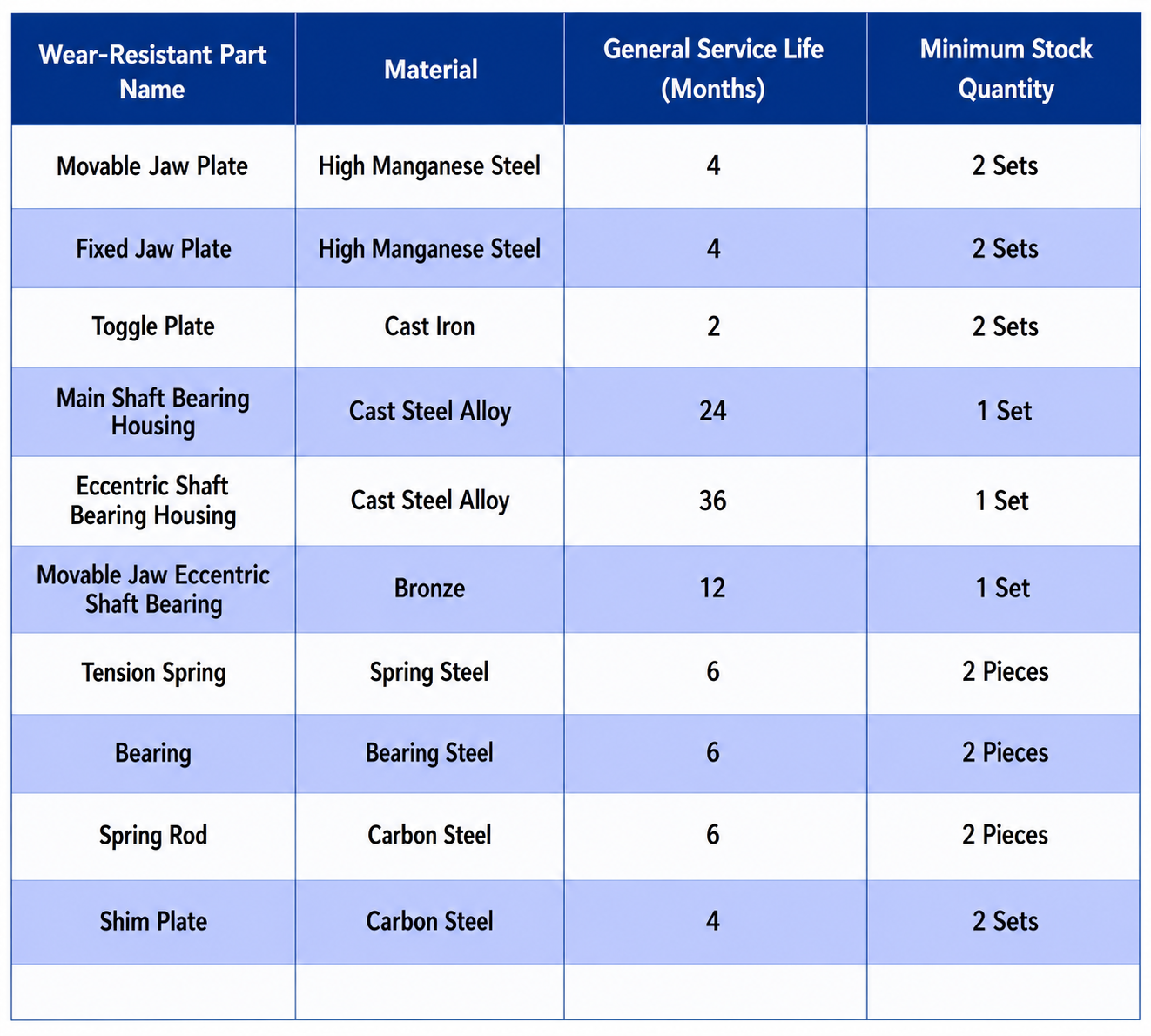

Service life of wearing parts

Product Features

1、Integrated Crushing and Screening Design

Jaw crusher and vibrating screen are installed in one system, reducing material handling and improving efficiency.

2、High Strength Jaw Plates

The jaw plates are made of high manganese steel, providing strong wear resistance and long service life.

3、Stable Steel Structure

The machine frame is built with heavy-duty steel structure, ensuring stable operation even in demanding working conditions.

4、Efficient Vibrating Screening

The vibrating screen separates materials into different particle sizes after crushing, improving aggregate quality.

5、Easy Operation and Maintenance

The machine has a simple structure, making operation easy and maintenance convenient.

6、Wide Application

Suitable for quarry crushing, mining projects, construction waste recycling and stone processing plants.

FAQ

1 What materials can the jaw crusher crush?

The jaw crusher can crush granite, basalt, limestone, river stone, iron ore and construction waste.

2 What is the maximum feeding size?

The maximum feeding size usually ranges from 300 mm to 600 mm, depending on the crusher model.

3 Can the machine produce different stone sizes?

Yes. By adjusting the discharge opening and using different screen meshes, the machine can produce different aggregate sizes.

4 Should I choose a diesel or electric jaw crusher?

Diesel jaw crushers are suitable for remote areas without electricity, while electric jaw crushers are better for fixed crushing plants with stable power supply.

5 Can you customize the vibrating screen?

Yes. We can provide vibrating screens with different mesh sizes and layers according to the required finished product sizes.

6 Can you design a complete crushing production line?

Yes. Our engineers can design a complete crushing and screening production line based on raw materials, required capacity and site conditions.
